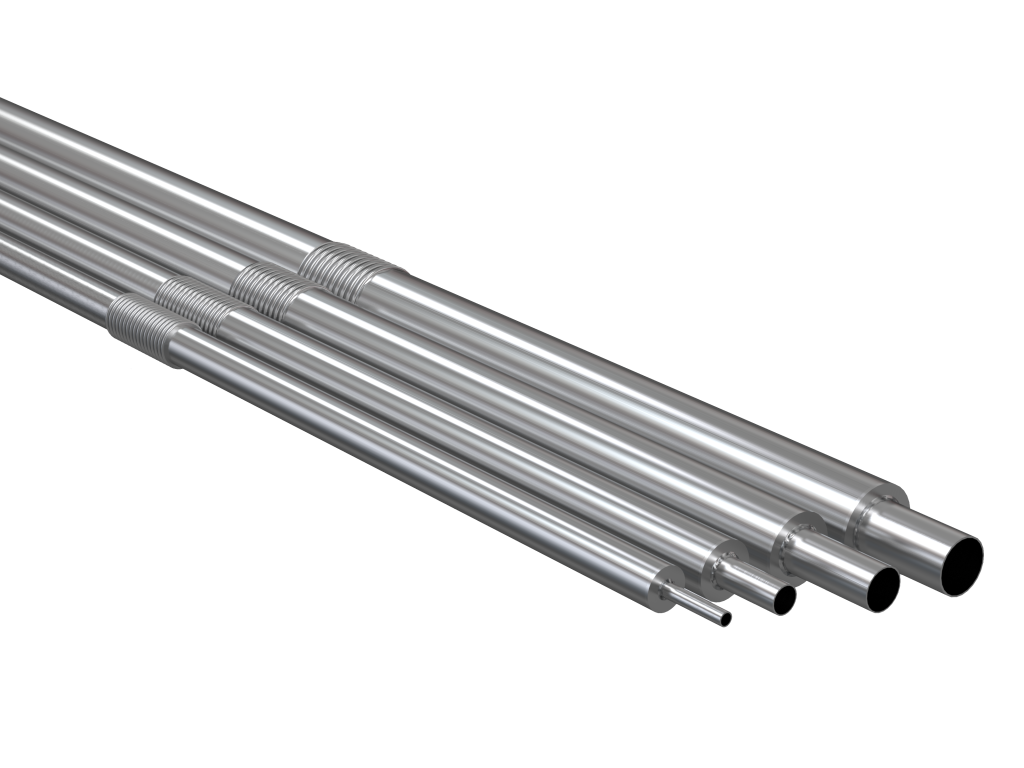

Cryolinks® Vacuum Jacketed Piping
CryoLinks® Vacuum Insulated Pipe (VIP) is the preferred method for transporting cryogenic liquids and is unmatched in ease of installation, lead times, and cost-effectiveness compared to other mechanical insulated systems. We designed CryoLinks for high-pressure applications of 1500 psi and higher.
Key Features And Benefits
- Approximately 50 times more effective than conventional foam insulation in preventing heat gain to the inner line and nearly 200 times more effective than bare copper lines.
- Higher rated pressures compared to conventional vacuum-insulated piping.
- Extremely long-lasting and impervious to UV degradation.
- Pre-engineered lengths to reduce lead time and cost vs conventional rigid VJ piping.
Technical details
| Pressure: | Up to 1500 PSI |
| Temp: | Down to -452°F (-269°C/ 4K) |
| Materials: | 300 Series Stainless Steel |
| Standard Sizes: | 1/2″ to 4″ NPS |
| Optional Sizes: | Up to 24″NPS |
| End connections: | Bayonets, welded field joints (vacuum or foam insulated), flanges, pipe threads, flared fittings, and custom ends. |
| Options: | Valves, Gas Traps, Vents, Vacuum Insulated Transfer Hoses |
Applications
Available For:
- Liquid Nitrogen
- Carbon Dioxide
- Liquid Argon
- Liquid Natural Gas
- Liquid Hydrogen
- Liquid Oxygen
- Liquid Helium
Industry Applications:
- Space Launch
- Semiconductor Manufacturing & Testing
- Pharmaceutical
- Biological Storage & Research
- Food and Beverage
- Electronics Manufacturing & Testing Applications
- Metal Tempering
- Rubber Deflashing
Literature
CRYOLINKS®
Certificates
ASME Code Compliant
Testing and Certification
