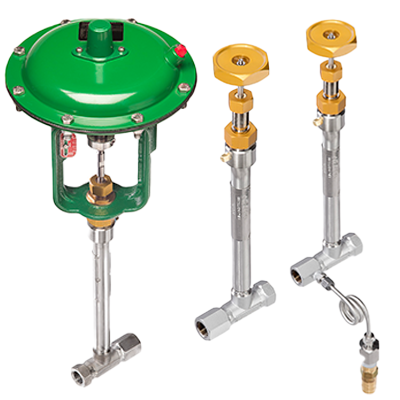

Techflow TE-Series Extended Stem Cryogenic Valves
Our Techflow TE-Series Extended Stem Valves are compliant with ASME B16.34 to ensure safe operation. The bubble-tight closure provides a tighter seal at cryogenic temperatures, preventing equipment problems. It features low torque for easy on/off operation.
Key Features And Benefits
- Self-aligning PCTFE seat design provides flexibility and solid closure
- Stainless steel body allows for all locations, including caustic environments.
- Bonnet port for relief valve, purge valve, or pressure gauge installation
- High Cv improves flow and liquid quality at the use point.
Technical details
| Pressure: | Up to 720 PSI |
| Temp: | Down to -452°F (-269°C/ 4K) |
| Materials: | 300 Series Stainless Steel |
| Sizes: | 1/2″ – 4″ NPS |
| Models: | Globe, Y Pattern Pneumatic or electric actuation |
| Options: | Linear Flow Plug, Shutoff Valves (Modular and Integrated) |
| Cleaning Options: | LOX Cleaning Available |
Applications
Available For:
- Liquid Nitrogen
- Carbon Dioxide
- Liquid Argon
- Liquid Hydrogen
- Liquid Oxygen
- Liquid Helium
Industry Applications:
- Bulk Tank Shut-offs
- System Expansion/ Re-Routing Connections
- Loading and unloading trailers and trucks.
- Liquified and gaseous atmospheric applications.
- Cold Boxes
Literature
TECHFLOW TE SERIES EXTENDED STEM
Certificates
ASME Code Compliant Testing and Certification
