Vacuum-Insulated Reservoir

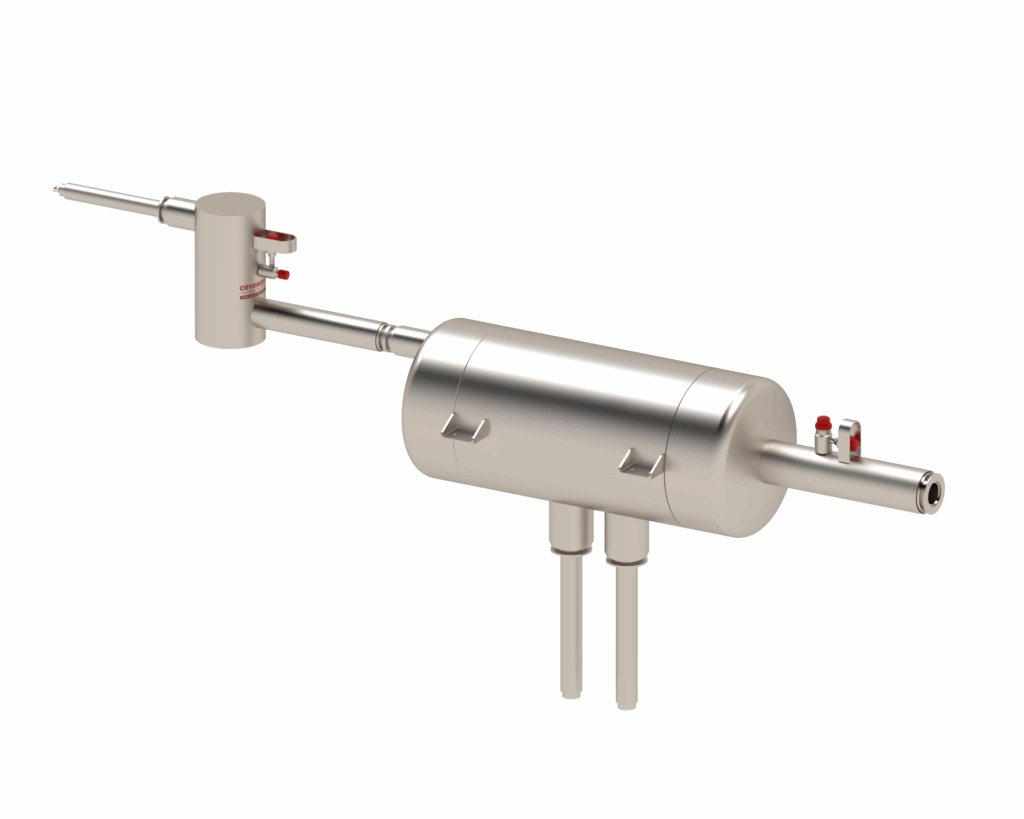

The vacuum-insulated reservoir is designed to maintain high-quality liquid at line pressure for on-demand withdrawal. The Vacuum Insulated Reservoir consists of a reservoir and a Keepfull vent device. Reservoirs, also known as accumulators, create an area for liquid/gas phase separation to occur. When coupled with the keepfull vent device, the gas rises to the top for venting, while high-quality liquid is dispensed from the bottom.
A vacuum-insulated reservoir can be used for any application that requires high-quality liquid delivery at a pressure equal to the bulk tank or branch line pressure.
Key Features And Benefits
- Reconditions and delivers high-quality liquid.
- It has a versatile design that can integrate into main lines, branches, or above critical use points.
- Horizontal and vertical configurations.
- Little to no maintenance, no controller required.
Technical details
| Pressure: | Up to 150 PSI |
| Temp: | Down to -320°F |
| Materials: | 300 Series Stainless Steel |
| Outlets: | 1, 2, 4 |
| Liquid Capacity: | 10 gallons (38 L) |
| Options: | Customization, Vertical Orientation, Oxygen and Facility Monitor integration |
Applications
Available For:
- Liquid Nitrogen
- Carbon Dioxide
- Liquid Argon
- Liquid Oxygen
Industry Applications:
- Scientific Instruments
- Environmental Chambers
- Thermal Vacuum Chambers
- Cold Plates
- Storage Freezers
Literature
VACUUM INSULATED RESERVOIR
Certificates
Assembly: Built to ASME B31.3 Process Piping
